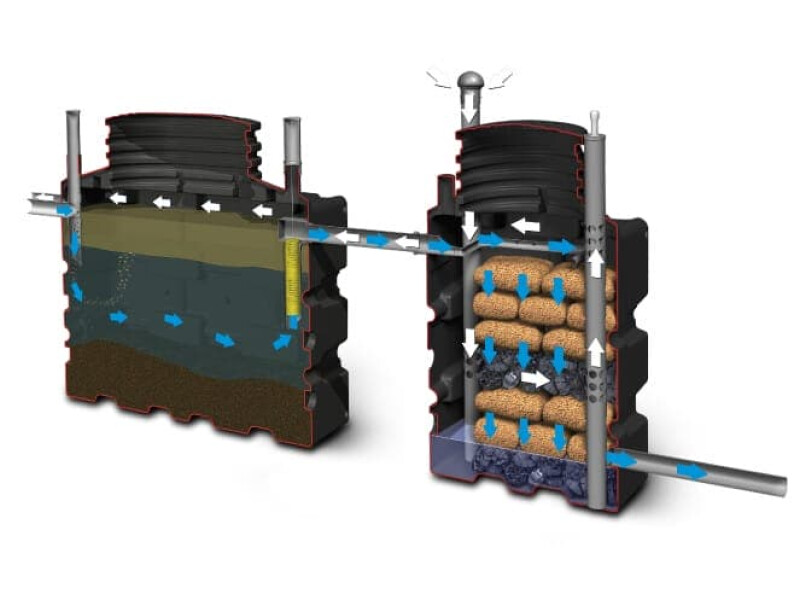

The ECOROCK unit is a small-sized wastewater treatment plant that caters from 6 to 30 persons application. The ECOROCK-system functions as a two-stages treatment plant. The raw sewage first enters a Primary tank to provide preseparation and initial breakdown of organic solids. The wastewater then passes through an effluent filter before discharging into the BIOROCK unit itself which incorporates the aerobic filtration process.
Where required the ECOROCK Series can be retrofitted to a traditional septic tank.
I Need A Free Project Assessment
Advantages And Benefits Of The
|ECOROCK||Electrical Plants||Organic Media Plants|
|Media Lifespan Is Up To 10 Years|
|Low Operational Costs|
|Minimal Annual Maintenance|
|Long Septic Tank Pump-Out Intervals|
|Long Absence Periods|
This later stage of the process is defined by layers of BIOROCK media. The BIOROCK media is pretreated with enzymes in order to achieve rapid start up and to stimulate the growth of the correct bacteria type. These bacteria colonize the media in vast numbers and rapidly digest the organic waste.
The treatment philosophy has been developed around a combination of aerobic/anoxic biological degradation and filtration. The BIOROCK technology advantage is further characterized by - minimal maintenance requirements & ability to handle intermittent (seasonal) loadings. (E.g. Holiday homes, Safari Lodges, Camping Sites, etc.)
|Volume||1000 Liters||1500 Liters||2000 Liters|
|Capacity PE||6 Persons||8 Persons||10 Persons|
|Weight||177 Kg||197 Kg||232 Kg|
|Downloads||Technical Sheet||Technical Sheet||Technical Sheet|
|Volume||3000 Liters||5000 Liters|
|Capacity PE||15 Persons||30 Persons|
|Weight||304 Kg||596 Kg|
|Downloads||Technical Sheet||Technical Sheet|
|Volume||1000 Liters||1500 Liters||2000 Liters||3000 Liters||5000Liters|
|Capacity PE||6 Persons||8 Persons||10 Persons||15 Persons||30 Persons|
|Weight||177 Kg||197 Kg||232 Kg||304 Kg||596 Kg|
|Downloads||Technical Sheet||Technical Sheet||Technical Sheet||Technical Sheet||Technical Sheet|
The Ecorock solutions are tolerant to absence periods of users, and are thus suitable for both main and secondary residences. Moreover, installation of the system is possible in any type of ground, with or without ground water table.
If the treated water is to be discharged at a higher level, the ECOROCK system is designed to accept a small pump in an integrated pumping chamber designed for this purpose.
BIOROCK can supply a quality pump to complete the "High Effluent Discharge" of the ECOROCK System, ensuring a «Key-In-Hand» solution, simplifying system assembly on site and saving considerable time during installation.
In keeping with the philosophy of the BIOROCK brand and the existing range, the ECOROCK system operates without electricity, avoiding any risks of failure and ensuring minimal operating and maintenance costs.
The new Generation of BIOROCK Sewage Treatment Plants is positioned as one of the most compact on the market, with a Primary Tank and the treatment unit being combined into one single tank. Thus, the footprint of the ECOROCK solution is extremely restricted: only 6m2.
The ECOROCK solutions are very light and delivered « ready to be installed », ensuring a simple and fast installation for a minimum of degradation of the garden. The installation of the ECOROCK solution can be carried out in one single working day, ensuring minimal installation costs.
The acquisition cost of the ECOROCK solution is particularly competitive. The savings in the purchase of the product are complemented by those related to the operating costs of the ECOROCK line, which are among the lowest in the market. Running without electricity, and therefore free of mechanical parts which are synonymous with heavy maintenance, the ECOROCK system allows its user to realize substantial savings in terms of both energy consumption and system maintenance.
With purifying performances in line with the performances of its big sister, the ECOROCK , the latest addition to the BIOROCK family range, is extremely efficient in terms of domestic waste water purification.
The two versions of the ECOROCK solution (model with a 2000 liters or 3000 liters primary settlement tank) allow it to respond precisely to the specific requirements of each application for which it is requested. With its new ECOROCK System, BIOROCK offers a resolutely innovative Residential Wastewater Treatment technique with a range of benefits that will delight both users and Sewage Treatment professionals.
